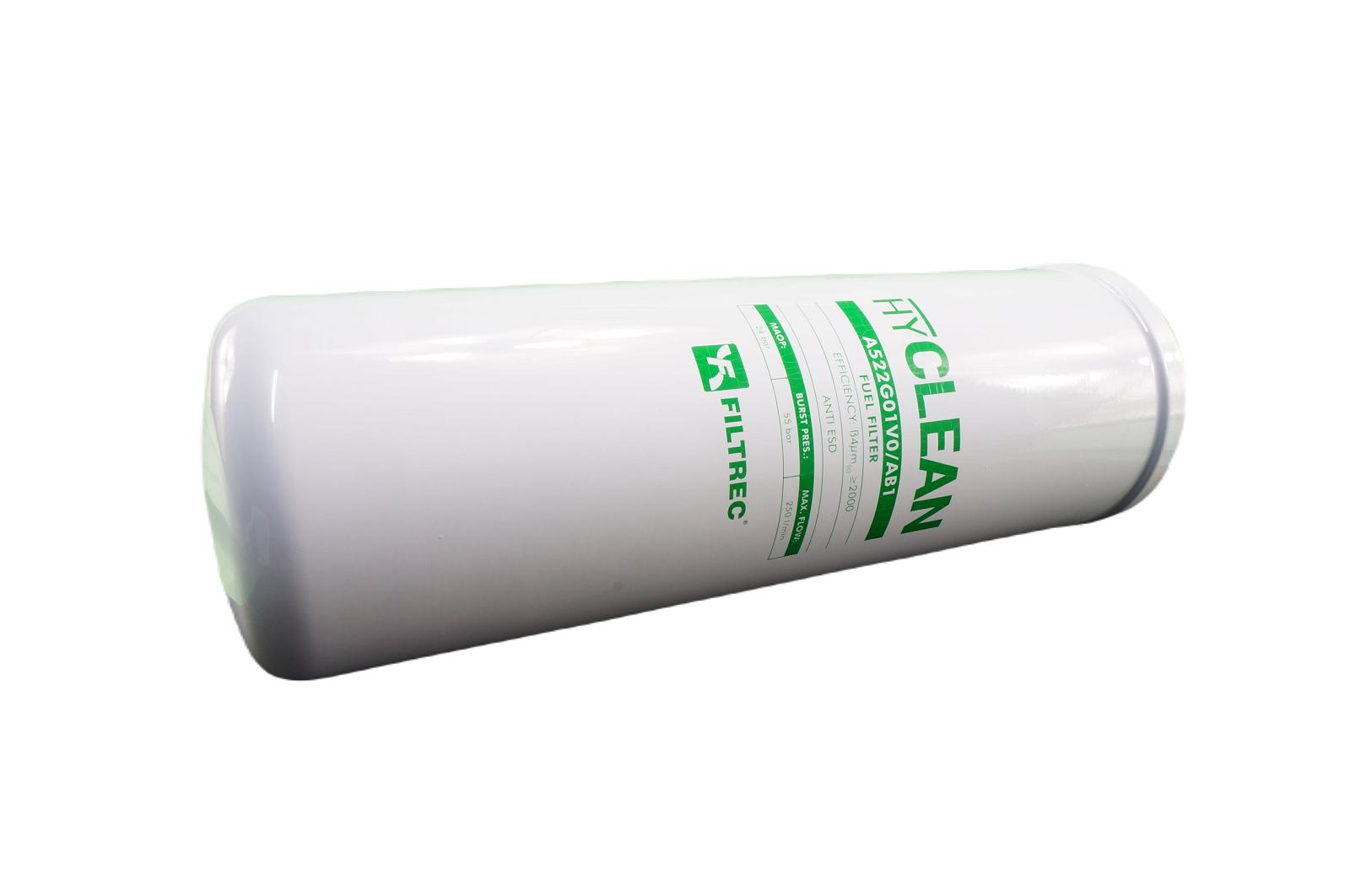

Filtrec A522G01V0/AB1 Donaldson DBB8666 Equivalent 4 Micron Bulk Fuel Filter for Fuel Transfer Carts, Bulk Storage Tanks

Filtrec A522G01V0/AB1 4 micron fuel filter is a direct cross reference to Donaldson DBB8666. It is widely known that fuel cleanliness is more critical than ever before as sophisticated control units on modern engines requires only the highest quality fuel to perform at their peak.  When fuel arrives at your bulk tank it has travelled from multiple locations with a high probability of contamination along the way.

Often you don't have time to filter your fuel multiple times and when your filling your equipment from your bulk tank you want to ensure your not spreading any contamination. Filtrec A522G01V0/AB1 bulk fuel tank filter offers superior cleanliness in a single pass achieving ISO 14/13/11 or even better cleanliness so you can rest assured the end result is pristinely clean fuel.

Offering equivalent results to Donaldson DBB8666, Filtrec A522G01V0/AB1 allows flows at up to 250 litres per minute, guarantees this by using their Absolute Beta filtration technology. Absolute Beta media offers exceptional performance, especially in terms of filtration effectiveness but also in terms of life cycle. All of the tests run with Absolute Beta showed best-in-class performance with a very little pressure drop. During the duration of the element's life before it needs to be replaced, this provides more stable flow and higher dirt retaining capacity. Further to this the elements feature ANTI ESD, this reduces the electrical discharge and prevents damage to the element.

If your looking for the very best replacement for your dirty Donaldson DBB8666, made in Italy Filtrec A522G01V0/AB1 will offer you the finest filtration performance at a more affordable price.

Application:

  • Fuel transfer carts
  • Bulk storage tanks
  • High efficency kidney looping
  • Other custom applications needing a water absorbing fuel filter

Suitable Fluid Types

#1 or #2 Diesel, Kerosene, Biodiesel up to B100, Petrol or gasoline including ethanol fuels.

Cross Reference With:

Donaldson DBB8666, Baldwin BF46061, Fleetguard FF5897

Features:

  • Up to 250 litre per minute max flow.
  • Absolute Beta Synthetic Media
  • ANTI ESD, safeguards against electrostatic discharge by limiting its effects.
  • Single pass filtration of target cleanliness ISO 14/13/11 or even better.

Technical Info:

  • Outside Diameter: 117mm
  • Inner Diameter: 1"3/4-12 UN 2B
  • Length: 361mm
  • Max Flow Rate: 250 lpm
  • Media Type: Inorganic Fiberglass
  • Efficiency: 4 µm(c) βx ≥ 2000
  • Seals: FKM
  • Note: Anti-ESD Filter Element

CLICK HERE TO DOWNLOAD FILTREC A522G01V0/AB1 BROCHURE



Logo

Filtrec is an Italian company that produces and distributes filters all over the world. They have a large variety of filter part numbers and one of the widest selections of elements to fit Filtrec and other manufacturer's housings, with over 55,000 exchange listings in product offerings.  The range of products on offer from Filtrec include pressure elements, return elements, air/oil separators, intake filters, water removal filters, fuel and lube filters. Filtrec filters are unparalleled in quality only using the very best components and meticulous attention to detail.

Please make sure that you are ordering the correct parts for your vehicle. If your not sure or don't know, please contact us. Provide us with the VIN#, YEAR, MAKE, MODEL of your vehicle and we will double check and verify fitment for you. So that we can avoid any wrong parts ordered and returns. Any parts ordered incorrectly return postage will be at buyers expense. Please see our terms of use.

SKU N1391
Model # A522G01V0/AB1
Brand Filtrec
Shipping Weight 2.7000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.365m
Shipping Cubic 0.003650000m3
